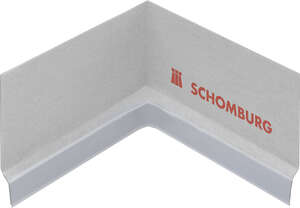

ASO®-Anschlussdichtecke-I

Continuity waterproof internal corner for use with bonded waterproof membranes beneath tiles

Print page

Product details

Description

• ASO-Anschlussdichtecke-I is a pre-formed section laminated both sides with a fleece, with one side provided with a self-adhesive butyl rubber strip.
• ASO-Anschlussdichtecke-I is bonded to the corner of the plastic, wooden or aluminium shower base, bathtub, door frame with the adhesive strip, connected with the ASO-Anschlussdichtband and integrated into the SANIFLEX, AQUAFIN-1K-PREMIUM, AQUAFIN-2K/M-PLUS or AQUAFIN-RS300 surface applied waterproof membrane.
• ASO-Anschlussdichtecke-I is applied in water exposure classes W0-I to W2-I in accordance with DIN 18534 and the ZDB data sheet "bonded waterproof membranes" (use in bathrooms and kitchens, living spaces, private and commercial sanitary rooms) as well as external areas to DIN 18531.

Areas of Application

  • For the reliable integration of bathtubs or shower bases into the bonded waterproof membrane
  • For the reliable integration of floor level windows or door units into the bonded waterproof membrane
  • For the reliable integration of metallic profiles into the bonded waterproof membrane
  • As a system component of bonded waterproofing for water penetration classes W0-I to W2-I in accordance with DIN 18534

Advantages

  • Approved system product
    • Chamfered internal corner
    • High adhesion to smooth surfaces
    • Flexible junction to units

Consumption:

Approx. 1 m/m

Article-No. Color Unit/Pallet Repackaging
206136-001 grey 1120 25
